Isopolis - Atari ST 256 bytes

A 256 bytes Atari ST (1985) cityscape attempt for Outline 2025 which came after some iterative Dimetric cube experiment using the HAKMEM 149 algorithm.

The original idea was way more ambitious / real-time with palette rotation and building details but i couldn't pull it off, the end result is still okay anyway even if a bit dull and not animated, this algorithm wasn't really suited for this platform perhaps, it is too fancy, ARM would be best due to heavy use of shifts !

Buildings could perhaps be done better with simple x,y iterations or specific Line A calls. (using fill patterns for details ?)

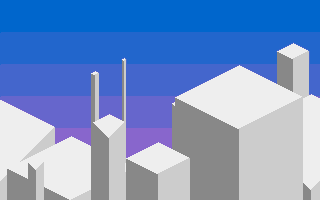

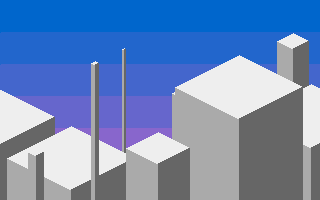

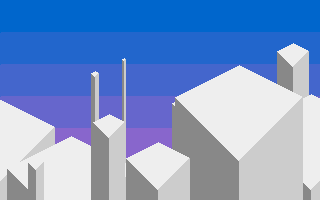

First implementation was all grayscale but it was a tad boring so the gradient / shades were added up, trails were a quick cheap addition which ended up okay.

This use Line A putpixel heavily.

The initial prototype wasn't particularly optimized and i departed heavily from it, had to look at some issues :

good predictable randomness, ended up using a 16 bits MCG (8 bytes)
good seed, chosen value turns out to be the first palette value, had some luck...
trying to fill the scene (gradient, colors, shades, trails), building details was too heavy / noisy, also experimented with geom variations

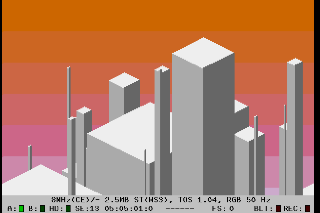

speed, first tests were on 32 MHz m68k, draw speed was fine but it was very slow at 8 MHz...

Biggest issue after optimizations was to get around crashes on specific RAM amount (>= 4MB) due to unchecked putpixel calls, this was concerning as it was the compo machine...

The crash fix was to check every putpixel calls for coordinates that goes outside the screen, this ended up too heavy so i had another go at optimizations.

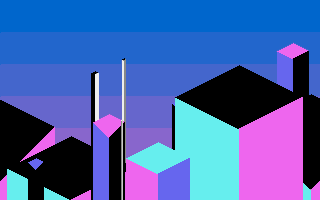

The speed improved by a factor of two with the fix so ~1m5s vs +2 minutes to render the screenshot above, not instant yet... but way more acceptable ! Many speed optimization may be left over. (especially on the use of word vs long)

Actual binary size is 288 bytes (300 bytes with clean exit) due to the 32 bytes program header but the party didn't count the header.

Versions

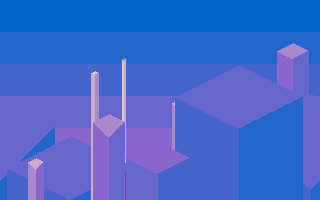

very early version, different seed / gradient, kinda liked this due to density and colors

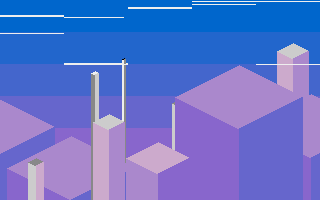

early version with the palette

different geom, no bytes change

a mix of both geom; heavier

shading variations, too dim

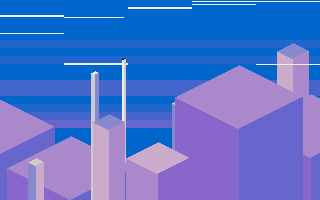

"CGA" like

fancier gradient (inspiration was C64 They are spraying by Gordian) : (y >> 5) & (y >> 3)

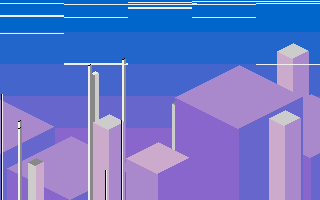

messy if run for too long... (~2 minutes)

Sources

; vasmm68k_mot -m68000 -Fbin isopolis.s -o
isopolis.tos

    dc.w $601a ; ph_branch

    dc.l end-start ; ph_tlen

    dc.l $0 ; ph_dlen

    dc.l $0 ; ph_blen

    dc.l $0 ; ph_slen

    dc.l $0 ; ph_res1

    dc.l $0 ; ph_prgflags

    dc.w $1 ; ph_absflag

start

    dc.w $a000 ; Line A init call

    movem.l (a0),a1-a4

    sf -6(a0) ; disable cursor / blinking



    ; supervisor mode for mem. access

    move.w #$20,-(sp)

    trap #1



    ; palette setup

    lea pal(pc),a2

    movem.l (a2),d0-d5

    movem.l d0-d5,$ff8240



    ; vertical gradient

    move.w #199,d7; d0,d7 shorter but seems to crash
with different RAM setup (>= 4MB)

    y:

        move.w d7,d5

        asr.w #5,d5

        move.w #319,d6 ; d3 save
2 bytes but way too slow...

        x:


move.w d5,(a3)


move.w d6,(a4)


move.w d7,2(a4)


dc.w $a001


dbra d6,x

        dbra d7,y



    loop:

        ; trails

        move.w #9,(a3)

        move.w d7,(a4)

        move.w d3,2(a4)

        cmp.w #199,d3

        bgt skipTrail

        dc.w $a001

skipTrail



        addq.w #1,d7 ;
framecount



        ; building setup

        move.w d7,d2

        and.w #63,d2 ; very fast
when using d3 but has shading issues

        bne.s skipNext


move.w (a2),d0


mulu #47989,d0 ; rng, seed at pal(pc)


move.w d0,(a2)


asr.l #7,d0 ; higher bits for better small range values




move.l d0,d4


and.w #7,d4


bne.s skip


moveq #2,d4

skip


subq.w #1,d4 ; s




moveq #1,d3


lsl.l d4,d3


subq.w #1,d3 ; r


move.l d0,d2


and.w #511,d2 ; can be removed with move.w below for 4 bytes gains
but meh result (may works with different seed though)


move.l d2,a5 ; x offset


swap d0


and.w #127,d0


add.w #52,d0


move.l d0,a6 ; y offset

skipNext

        move.l d3,d6 ; x

        and.w d7,d6

        clr.l d5 ; y



        swap d7

        ; iterate & draw

        move.w #1276,d7

        i:


move.l d6,d0


asr.l d4,d0


add.l d0,d5 ; y += x >> rs1




move.l d5,d0


asr.l #8,d0


sub.l d0,d6 ; x -= y >> 8




; y -= i & 1


btst.l #0,d7


beq skipAdjust


subq.l #1,d5

skipAdjust


;move.w d7,d0


;and.l #1,d0


;sub.l d0,d5 ; y -= i & 1





; top color


move.l #11,a1


sub.l d4,a1




; geom variation but inconsistent (note : use d1 as shift value for
asr.w #1,.. below)


;clr.l d1


;tst.w (a2)


;blt s


;moveq #1,d1

s


move.l d3,d2


asr.w #1,d2


sub.l d5,d2 ; (r >> 1) - y




move.l d3,d0


sub.l d6,d0


asr.w #1,d0 ; (r - x) >> 1




; face color


move.l d0,d1


bpl skipNegate


neg.l d0

skipNegate


cmp.l d2,d0


blt draw


tst.w d1


bmi skipLeft


subq.w #1,a1


bra.s draw

skipLeft


subq.w #2,a1

draw


move.w a1,(a3) ; color


move.w d6,d2


add.w a5,d2


swap d2


move.w d5,d2


add.w a6,d2


cmp.w #199,d2


bgt skipDraw


move.l d2,(a4)


; slower ->


;move.w a5,(a4) ; offset


;add.w d6,(a4) ; + x


;move.w a6,2(a4) ; offset


;add.w d5,2(a4) ; + y


dc.w $a001 ; plot

skipDraw

        dbra d7,i

        swap d7



        bra loop

; clean exit support (+12 bytes)

;        cmp.b #$39,$fffc02

;        bne loop

;    clr.l -(a7)

;    trap #1



pal

    dc.w $036,$136,$236,$336,$436,$546,$656

    dc.w $666,$444,$777

end
